Abaqus Tensile Test Simulation Files Using Ductile Damage

This Abaqus tensile test simulation files using ductile damage package provides a clean, validated setup for simulating ductile failure under uniaxial loading. Whether you’re studying fracture mechanics, validating plasticity models, or preparing a research case, these simulation files save hours of setup work and teach you how to model ductile failure step-by-step in Abaqus.

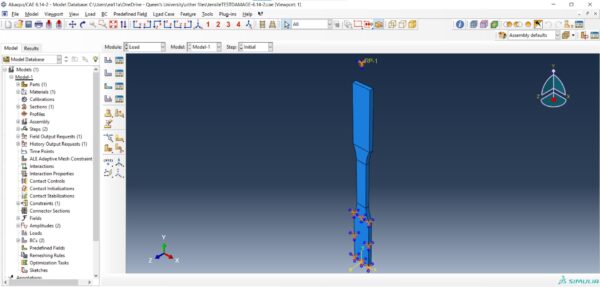

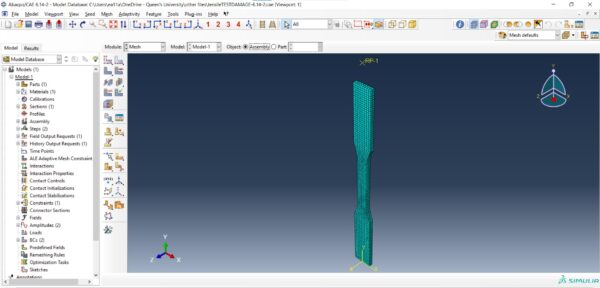

The core of this simulation is a classic tensile test with ductile damage initiation and evolution. You’ll define a material with elastic-plastic behavior, add a ductile damage criterion, and simulate failure until the specimen breaks. These Abaqus tensile test simulation files using ductile damage show you how to activate failure mechanisms in Standard or Explicit solvers, apply realistic boundary conditions, and observe accurate failure behavior.

The simulation model is provided in two versions: Abaqus 2024 and Abaqus 6.14-2, along with an INP file for import, editing, or integration with other models.

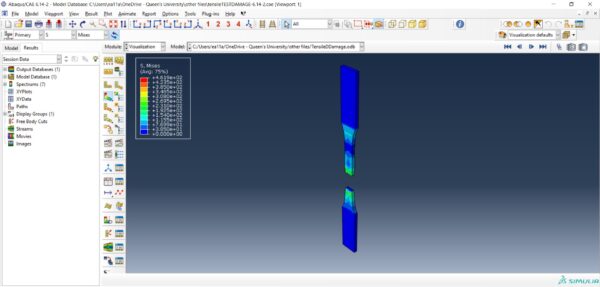

These Abaqus simulation files are designed for clarity, speed, and accuracy. They’re ideal for thesis projects, training, or as a starting point for advanced damage and fracture studies. The ductile damage model captures strain localization and fracture with realistic stress contours and failure zones — just like experimental tensile tests.

✅ What’s Included in the Download (ZIP):
– Ductile_2024.cae – Model for Abaqus 2024
– Ductile_6.14.cae – Model for Abaqus 6.14-2
– Ductile.inp – Clean Abaqus INP file for custom use
– README.txt – Instructions on how to open or import files

🎓 Learning Outcomes:
– How to simulate tensile fracture using ductile damage in Abaqus
– Set up elastic-plastic material models with failure criteria
– Use Abaqus Explicit or Standard to simulate damage
– Visualize damage initiation and propagation in FEA
– Save time building damage simulations from scratch

📂 How to Use These Abaqus Tensile Test Simulation Files:

To Open the CAE:
→ Abaqus → File → Open → Ductile_2024.cae or Ductile_6.14.cae

To Import the INP:
→ Abaqus → File → Import → Model → Ductile.inp

📺 Full Walkthrough Tutorial:
Watch the YouTube tutorial to see the full setup, explanation, and result interpretation.

Whether you’re a beginner or an advanced FEA user, these Abaqus tensile test simulation files using ductile damage give you a fast-track path to understanding failure modeling in a high-stress uniaxial tensile environment.
