Shear Simulation in Pinned Connections (Abaqus Files)

Shear simulation in pinned connections Abaqus model lets you accurately analyze shear behavior in mechanical joints, lap shear setups, and bolted connections. This simulation is built in Abaqus using solid elements and realistic contact conditions — no subroutines needed.

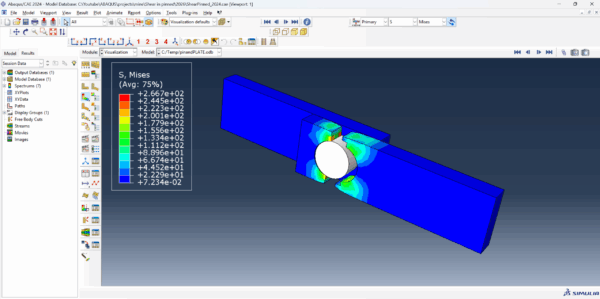

Designed around the tutorial How to Simulate Shear in Pinned Connections | Abaqus Tutorial, this simulation uses solid elements, frictional contact, and boundary conditions that replicate realistic shear behavior in mechanical fasteners or lap joints. It’s perfect for visualizing contact pressure, bolt-hole deformation, stress concentrations, or shear failure mechanisms.

The model is clean, editable, and built in Abaqus 2024 — with a compatible version for 6.14-2 included. No subroutines are required, making it ideal for students, researchers, or engineers analyzing mechanical fasteners, connection zones, or lap-shear specimens.

✅ What You’ll Get in the Download (ZIP):
– ShearPinned_2024.cae – Built in Abaqus 2024
– ShearPinned_6.14.cae – Fully compatible with Abaqus 6.14-2
– ShearPinned.inp – Input file for direct job submission
– README.txt – Usage instructions

🎓 Learning Outcomes:
– Simulate shear in pinned or bolted connections
– Apply contact interactions with friction
– Analyze localized deformation and stress concentrations
– Visualize failure initiation in shear-critical regions
– Adapt the model for rivets, lap joints, or mechanical interfaces

📂 How to Use:
Open CAE:
→ File → Open → ShearPinned_2024.cae or ShearPinned_6.14.cae
Import INP:
→ File → Import → Model → ShearPinned.inp
Run Job:
→ No subroutine needed. Create and submit job.

📺 Watch the Full Tutorial:
https://www.youtube.com/watch?v=9TC1M98p6gE

☕ Support the Channel:
Download a clean Abaqus shear simulation model and save hours of setup.

🚫 No refunds. This is a digital product. All sales are final.
